Peristaltic pump: dosing, diluting and dispensing

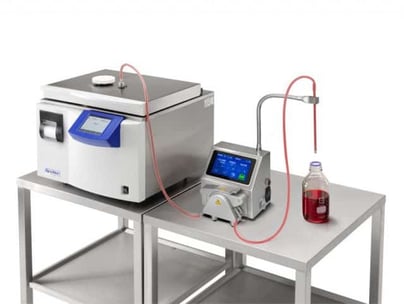

The programmable Systec Mediapump peristaltic pump / peristaltic pump for manual or automated dosing of liquid media is now available in a new and improved design. The electronically controlled peristaltic pump impresses with its practical functionality and high level of user-friendliness. The dosing volume is adjustable from 0.1 ml - 99999.9 ml. The system works with an accuracy of ± 0.5 % and ensures reproducible results thanks to automatic calibration. In addition to simple manual filling, further individually parameterizable programs are available.
A solid precision roller mechanism ensures the highest possible dosing accuracy, even at high delivery rates of 3000 ml/min. The special roller head ensures a continuous flow of liquid with minimal pulsation. The peristaltic pump is also particularly suitable for filling hot and viscous media into Petri dishes.
Thanks to its sophisticated design, the peristaltic pump can also be used as part of automated processes. High flexibility is achieved through the possibility of programming and reproducible use of different tubing sets. A new type of tubing bed mechanism makes it easier to change the tubing sets. All functions are clearly displayed on the peristaltic pump's touchscreen together with the permanent display of the various parameters. The peristaltic pump's touchscreen offers a choice of different languages and color displays.
Features of the peristaltic pump:
- Innovative tubing bed mechanism enables the tubing sets to be changed quickly
- Automatic calibration ensures reproducible results
- Clear control panel offers optimum handling
- High-quality industrial touchscreen and smooth stainless steel housing surfaces allow effective wipe disinfection
- Double roller pump head in conjunction with an optimized hose bed guarantees maximum precision (+/- 0.5%) and long hose service life
- Return function prevents media from gelling in the hose set during longer breaks
- Function for filling the hose at the start of the filling process
- Optional operation of the start and tamping function via hand and foot switch
- Fully flexible stand with plug-in holder for the outlet nozzle
- Service-friendly modular design and compact construction
The Systec peristaltic pump - fully automatic, fast and precise.
Download the Systec Mediapump (peristaltic pump) flyer here: Systec Mediapump Flyer.
The peristaltic pump can be combined with the Systec Mediaprep media preparators.
