Systec Mediaprep

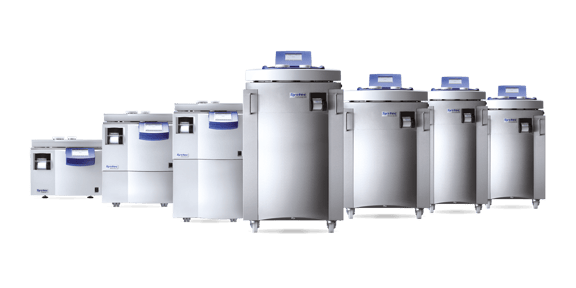

Automatic media preparators (nutrient media preparators and nutrient media sterilizers) optimized for the preparation, sterilization and sterile filling of liquids, such as agar culture media, peptone water and buffer solutions or other sterile liquid media. Available in seven different sizes for 10 to 120 liters of media. Featuring an improved heating performance, rapid recooling, a magnetic stirrer, an inner container, temperature-interlocked dispensing nozzles and bushings for filling and supplying additives. The optimized automation regulates process times and ensures that the sterile media are of high quality.

Type

Dimensions
(L x W x H in mm)/ Wattage in kW

Chamber dimensions
(Ø x H in mm)/ Chamber volume in litres

Inner vessel dimensions
(Ø x H in mm)/ inner vessel volume in litres

Dimensions and media connections

Systec Mediaprep-10

555 x 635 x 480 / 3,6

296 x 250 / 17

270 × 222 / 12

Systec Mediaprep-10

Systec Mediaprep-20

555 x 635 x 715 / 9,3

296 x 450 / 30

270 × 422 / 23

Systec Mediaprep-20

Systec Mediaprep-30

555 x 635 x 915 / 9,3

296 x 650 / 44

270 × 622 / 34

Systec Mediaprep-30

Systec Mediaprep-45

555 x 780 x 1080 / 20

400 × 485 / 65

380 × 452 / 51,3

Systec Mediaprep-45

Systec Mediaprep-65

550 x 780 x 1210 / 20

400 x 690 / 90

380 × 657 / 74,5

Systec Mediaprep-65

Systec Mediaprep-90

650 x 895 x 1110 / 20

500 x 610 / 126

480 × 572 / 103,5

Systec Mediaprep-90

Systec Mediaprep-120

650 x 895 x 1240 / 20

500 x 790 / 162

480 × 752 / 136,1

Systec Mediaprep-120

Systec Mediaprep-10: Voltage 220 - 240 V, 50 / 60 Hz, 16 A.
Systec Mediaprep-20: Voltage 380 - 400 V, 50 / 60 Hz, 16 A.
Systec Mediaprep-30: Voltage 380 - 400 V, 50 / 60 Hz, 16 A.
Systec Mediaprep-45 to Systec Mediaprep-120: Voltage 380 - 400 V, 50 / 60 Hz, 32 A.
Other supply voltages available on request.

Standard Features

5.7" touch display - for simple and intuitive operation

7 predefined programmes, up to 100 programmes can be created and saved

Exchangeable media vessel

Separate loading hatch for the addition of additives

Integrated compressor for sterile-filtered support pressure in the cooling phase

Safety valve for pressure relief in the event of thresholds being exceeded zur Druckentlastung bei Grenzwertüberschreitung

Water level protection

Overtemperature protection

Continuous mixing via magnetic stirrer

Flexible PT-100 temperature sensor

USB interface for external documentation

RS-232 interface for external documentation (network-capable)

RS-485 interface for communication with a Systec Mediafill

Available options



Aquastop

Options for documentation



Integrated printer for batch documentation

Systec ADS documentation software package for comprehensive documentation

Documentation SD: data storage on SD card for up to 10,000 sterilization cycles and transmission of data to a PC

Systec ADS CFR documentation software package with conformity to FDA 21 CFR Part 11

AuditTrail: unalterable and traceable documentation according to FDA 21 CFR Part 11

= Standard = Optional
Technology
  • Design

    Simple and safe handling
    All of the Systec Mediaprep’s from 20 liters are on rollers with locking brakes for transportable use, and can be positioned ideally anywhere within the laboratory. The touch display for operation, positioned at the top on the door, is clearly legible and easy to reach.


    heating and cooling

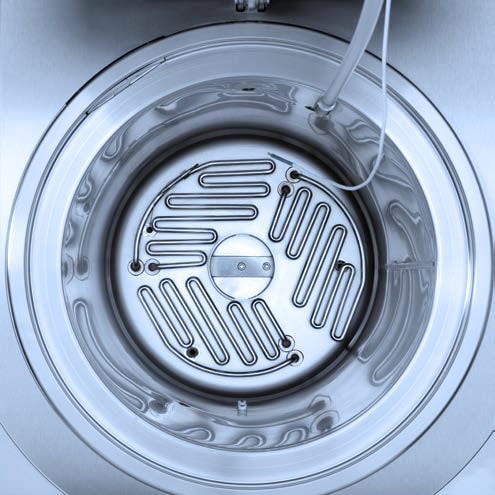

    Heating and cooling

    Highly effective heating and cooling
    Powerful heating elements ensure fast heating. The rapid cooling is effected through water circulation at the external walls of the media vessel with sterile demineralized water that is cooled with external water via a heat exchanger. The total cycle time including heating, sterilizing and cooling is between 60 and 120 minutes, depending on the vessel size, the amount of medium and the temperature of the cooling water. The sterile-filtered support pressure prevents the medium from foaming or over-boiling. A compressor is installed as standard in all Mediaprep models.


    microprocessor control unit
    Microprocessor control unit

    Fully programmable microprocessor control unit
    The fully programmable microprocessor control unit is a unique feature of the Systec Mediaprep. The automatic process ensures that the prepared and sterilized media is of a consistently high- and repeatable quality. During the process, the medium is mixed thoroughly, heated, sterilized and cooled down to the selected filling temperature. The medium is maintained at the filling temperature for the filling process.

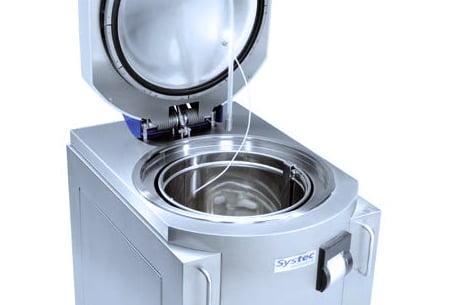

    Systec Mediaprep operation

    Easy to operate
    Control of the door and loading hatches is temperatureand pressure dependent. Inadvertent opening is impossible. The media vessels are exchangeable, and thanks to the integrated handle grip, easy to remove and clean.

  • Operation
    bedienung_mediaprep2

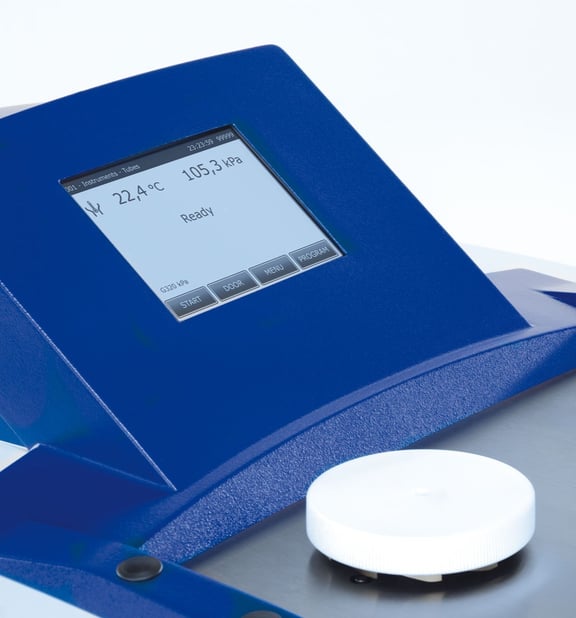

    Touch-Screen

    Operation by Touch Screen technology for all media preparators
    Operation is easy and rapid via a large (5.7 inch), highly visible touch screen interface. This innovation offers additional options and increased fl exibility when working with the autoclave. For example, process data can be displayed numerically or graphically. 7 programs are pre-defi ned but can be expanded (up to 100) as required by the user. To initiate a new program, the user is guided through the process by menu dialog. Every new program is automatically allocated a permanent, unalterable name and can also be given an individual designation by the user. All process parameters can be individually altered.

    Predefined programmes

    1 Medium
    2 Medium
    3 Medium and additiv
    4 Free steam
    5 Liquids and cooling
    6 Liquids
    7 Cleaning

  • Safe media dispensing
    mediaprep_-additivport_spritze

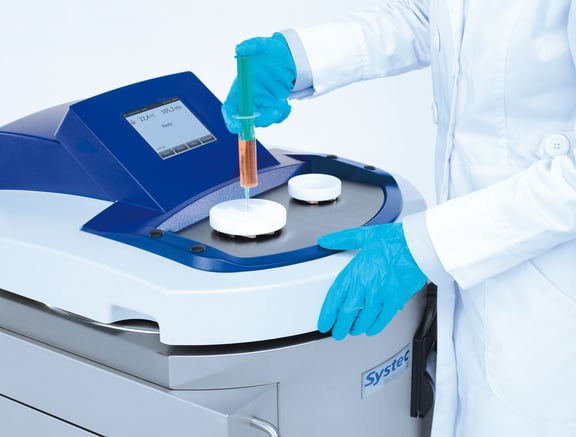

    Systec Mediaprep sterile addition of additives
    mediaprep_additivport_flasche
    Systec Mediaprep sterile dispensing

    Sterile addition of additives
    It is possible to add controlled amounts of additives after sterilization via the filling port. The filling port is generously dimensioned and has a safety lock. The additives can be introduced with sterility maintained by using a bottle into the open port or with a syringe through a silicone septum embedded in the locking cap.


    Sterile dispensing
    mediaprep_deckel1
    Systec Mediaprep with dispensing port and lance

    Sterile dispensing
    The dispensing port can be opened for the sterile dispensing of the medium from the media preparator. A silicone tube is connected to the dispensing port using a dispensing lance. To ensure the sterile dispensing of the medium, the dispensing lance and the silicone tube must be pre-sterilized in an autoclave. The medium can either be dispensed using the Systec Mediavalve via sterile-filtered air pressure generated by the integrated compressor, or by connecting any commercially available peristaltic pump or a device that is equipped with an integrated pump.


    Dispensing alternatives
    The prepared and sterile medium is dispensed via a flexible tube. The internal aspiration tube and the dispensing port are also automatically sterilized as part of each sterilization process via the inlet of steam. The tube separate to the vessel and the dispensing adapter connected to the tube must be pre-sterilized using a suitable steam sterilization process and must be connected to the dispensing port under sterile conditions.

  • Standards & regulations

    Systec Media preparators comply with the following standards and regulations:

    Pressure vessel:

    • 2014 / 68 / EU Pressure Equipment Directive
    • ASME Boiler & Pressure Vessel Code, Section VIII, Division 1
    • China Stamp

    Other guidelines:

    • 2014 / 35 / EU Low Voltage Directive
    • 2014 / 30 / EU on Electromagnetic Compatibility
    • 2006 / 42 / EC Machinery Directive

    All media preparators are CE marked.


    We will be happy to provide a complete list of standards and summary of regulations on request.



Options
  • Dispensing alternatives
    mediavalve
    Systec Mediavalve

    Systec Mediavalve – automatic tube valve
    An economical method for dispensing uniform quantities. Pre-selectable constant slight overpressure in the media vessel ensures that the medium flows. Enter the desired quantity once, the vessel calibrates itself according to the viscosity of the medium via a sample dosing.




    mediapump
    Systec Mediapump

    Systec Mediapump – peristaltic pump
    High precision and high speed are a hallmark of this system. The dispensing volume can be set from between 0.1 ml to 10 L. The system works at a tolerance of ± 0.5% and ensures reproducible results thanks to the automatic calibration. Alongside simple manual dispensing, there are 45 individually confi gurable programmes available.


    tube-filler
    Systec Mediafill


    Systec Mediafill – plate pourer and tube filler
    The Systec Mediafill plate pourer and tube filler dispenses culture media automatically, safely and effi ciently into Petri dishes. It can be configured as an option for the most diverse of applications and, for example, be converted to a tube filler.


    Other systems
    Commercial peristaltic pumps and dilutors can also be connected.

  • Options for documentation
    drucker

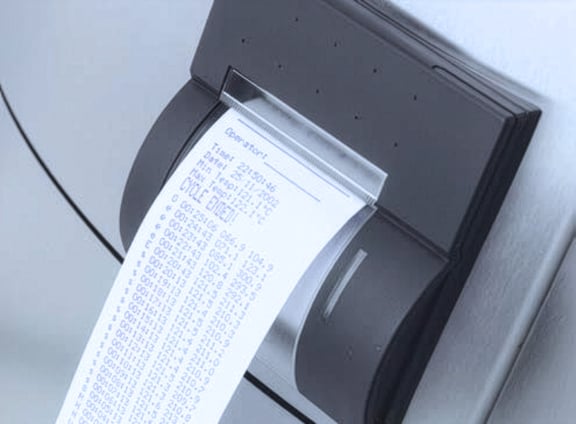

    Printer

    Printer
    Optional integrated printer for documentation of program type, batch number, date / time, temperature / pressure progress and sterilization phase.


    Systec ADS documentation software package

    pc
    Systec ADS Software

    Via RS-232 interface for direct connection to a PC or for connecting to an Ethernet network via converters. Special software for Windows for documentation of all process flow data such as pressure, temperature, time, and sterilization phase including relevant diagrams. The Systec ADS documentation software processes documented data both graphically and numerically.


    sd
    SD card

    SD card
    Extensive documentation on up to 10,000 sterilization cycles* via an (optional) integrated card slot and a 1024 MB SD memory card. All the recorded data is available, via the SD memory card, for processing with the Systec ADS documentation software.

    *only in combination with the optional Systec ADS software.


    fda
    FDA 21 CFR part 11

    Systec ADS CFR documentation software package with conformity to FDA 21 CFR Part 11
    Optional documentation for the Systec Mediaprep models. Download of the process flow and audit trail data from the media preparators. This solution ensures documentation according to the provisions of the FDA 21 CFR Part 11. The Systec ADS documentation software with conformity to FDA 21 CFR Part 11 processes the documented data, both graphically and numerically.


    AuditTrail
    AuditTrail

    AuditTrail
    AuditTrail allows you to set up and administer the users of the Systec Mediapreps. You can specify which user can perform which actions on five different authorization levels. In addition, the access rights for the stored sterilization programs can be specified individually. The user must log in with a username and password before each action. All the actions carried out (e.g. the changing of parameters, or the starting or stopping of sterilization programs) are documented and can be traced back to the user responsible, and can also be identified by a time-stamp (date and time). All the data generated by the user’s actions or by the documentation of a sterilization cycle are protected against manipulation and marked with the electronic signature of the respective user.
