Systec Mediafill

A dispensing and pouring system for automated dosing and filling of microbiological culture media in petri dishes with diameters of 35, 60, 70 and 90 mm, as well as for Bi-plates and Tri-plates and for the automatic metering of liquid media into test tubes.

Mediafill

Stack 220

Stack 440

Stack 660

Lenght (mm)

683

-

-

-

Width (mm)

662

-

-

-

Height (mm)

348

-

-

-

Diameter (mm)

-

566

566

566

Overall height (mm)

-

730

1094

1444

Max. stack height for Petri dishes (mm)

-

345

682

1030

Petri dish diameter (mm)

-

90

90

90

Petri dish height (mm)

-

12 - 26

12 - 26

12 - 26

Capacity (Petri dish height 16,5 mm)

-

220

440

660

Weight (kg)

Mediafill

37.5

-

-

-

Stacker (without Petri dishes)

-

6.9

9

14,3

Additives pump (optional)

0.5

-

-

-

Peltier cooling (optional)

1.7

-

-

-

Technical modifications reserved.

Standard Features

5.7" touch display - simple and intuitive operation

One-touch Petri dish selection - integrated database for pre-programmed Petri dish dimensions

Unsupervised, fully automatic process - filling and stacking without user intervention

Smooth and quiet operation - noise emission reduced to a minimum

Smooth aluminium surfaces - easy to clean, no holes or joints in which deposits of the medium can remain

Three stacking carousel heights available - for up to 220, 440 and 660 Petri dishes

EasyStack - the stacking carousel can be fully removed from the Systec Mediafill

Integrated peristaltic pump (main pump) - for the precise dispensing of media

DropStop™ function - prevents uncontrolled bleeding at the filling port

Shaker function - optimum distribution of the media in the Petri dishes

UV lamp with 2.3 W UVC light emission - reduces the risk of contamination

Manual filling function - either via foot switch or via timer

Available options



Ink jet printer for labelling the Petri dish side

A second integrated pump for the addition of additives immediately prior to dispensing

Tube filler, up to 4 racks possible, for filling test tubes with diameters of 13, 16, 20, 25 and 30 mm

Cable connection Systec Mediafill > Systec Mediaprep printer for documentation

Pager function - automatic message from the System Mediafill to the user when intervention is necessary

Option for filling bi-plates and tri-plates

Peltier cooling unit for rapid agar solidification and minimizing condensation

= Serie = Optionel
Technology
  • Design
    _systec-mediafill-mit-systec-mediaprep
    Systec Mediafill with Systec Mediaprep

    Fully automatic, safe and efficient

    The Systec Mediafill Plate Pourer is the perfect companion to the popular Systec Mediaprep line of automated media sterilizers. Connect Systec Mediafill to Systec Mediaprep and you have a completely closed and sterile walk-away system for media preparation and plate pouring.


    systec_triplates
    Systec Mediafill with Tri-Plates
    biplates
    Systec Mediafill with petri dishes

    Automatic pouring of 90mm, 60mm and 35mm petri dishes, bi-plates und tri-plates

    The Systec Mediafill can automatically pour 90mm, 60mm and 35mm diameter dishes and can accommodate up to 26mm deep dishes, with a processing rate of 900 plates per hour. The Systec Mediafill provides valuable time savings with reliable efficiency.
    *other diameters on request


    mediafill_stacks
    Systec Mediafill stacks: 220,440, 660

    Three different carousel sizes available
    Three different carousel sizes are available: 220, 440 and 660 plates. All carousels have the EasyStack™ feature which allows users to load and unload a carousel full of plates. Transferring filled dishes is now fast and easy; after pouring is completed, simply remove the carousel with filled dishes and replace with a second carousel full of empty dishes.


    mediafill_bedienung
    Touch-Screen

    Easy operation via intuitive touch screen
    The Systec Medaifill is controlled via an intuitive touch screen interface and includes a database of Petri dish brands to insure reliable operation with your dish supplier of choice.


    Integrated peristaltic pump
    The integrated peristaltic pump insures precise filling of media, a second pump is available for simultaneous dispensing of blood or other additives. Both pumps feature DropStop control which prevents dripping of media between dish dispensing. With the Pump back function: in the event of malfunctions, the medium is pumped back to prevent gelling in the tube.

    Pump
    Filling volume main pump (ml)
    1 bis 999,95
    Filling accuracy at 15 ml (%)
    1
    Filling volume additives pump (ml)
    1 bis 10
    Maximum fill rate
    Manual filling (ml/min)
    1000
    Dish filling (ml/min)
    600
    Fill delay (sec)
    0 bis 10

    UV-lamp
    The Systec Mediafill also utilizes a UV lamp with 2.3 W UVC light emission ensuring sterile dispensing of media.

    UV light
    Output (W)
    9
    UVC light emission (W)
    2,3 (254 nm)
    Interface RS-485
    Power connection
    100 V – 240 V, 50/60 Hz

    mediafill_rund
    Systec Mediafill Ring and stepper motor

    Silent, accurate and precise operation
    The Systec Mediafill is manufactured with a frictionless ring and stepper motors for silent and precise operation. The smooth aluminum surface is easy to clean with no holes or gaps where media can flow into. Shaft seals are installed on every moving axis to avoid media penetration into the internal components of the machine.




    tube-filler
    Systec Tube filler

    Tube-Filler
    Furthermore, the Systec Mediafill can be converted into a tube filler using the same vessel and little effort. This automatic system can be fitted with up to 4 racks and processes test tubes with diameters of 13, 16, 20, 25 and 30 mm. Racks with test tubes of different diameters can be filled simply and efficiently in one work sequence.



  • Operation
    bedienung_mediaprep2
    Touch-Screen

    Opration via Touch-Screen
    The Systec Medaifill is controlled via an intuitive 5,7” touch screen interface and includes a database of Petri dish brands to insure reliable operation with your dish supplier of choice. Choose your brand and plate size to ensure precise operation.



  • Standards and regulations

    Systec Mediafill comply with the following standards and regulations:

    • 2006 / 95 / EU Low Voltage Directive
    • 2004 / 108 / EU on Electromagnetic Compatibility
    • 2006 / 42 / EC Machinery Directive

    All media preparators are CE marked.
    We will be happy to provide a complete list of standards and summary of regulations on request.

Application
  • Dispensing and pouring of media
    Systec Tri-Plates

    Dispensing and pouring
    of media in 90mm, 60mm and 35mm diameter dishes, but also bi-plates and tri-plates.


    tube-filler
    Systec Tube-Filler

    Tube-Filler
    Dispensing and pouring of media in 13mm, 16mm, 20mm, 25mm and 30mm diameter test tubes.

    *other diameters on request



Options
  • Options and Accessories
    biplates
    Systec Mediafill with Petri dishes
    systec_triplates
    Systec Mediafill with Tri-Plates

    A dispensing and pouring system for automated dosing and fillingg
    of microbiological culture media in petri dishes with diameters of 35, 60 and 90 mm, as well as for bi-plates and tri-plates and for the automatic pouring of liquid media into test tubes.




    tube-filler
    Tube-Filler

    Tube-Filler
    up to 4 racks possible, for filling test tubes with diameters of 13, 16, 20, 25 and 30 mm

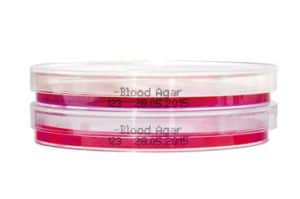

    drucker_petrischale
    Labelling the Petri dish side

    Ink jet printer
    for labelling the Petri dish side

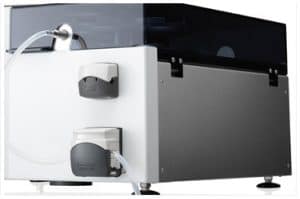

    pumpe
    Second integrated pump

    Second integrated pump
    for the addition of additives immediately prior to dispensing


    kabelverbindung
    Systec Mediaprep printer for documentation

    Cable connection
    Systec Mediafill to Systec Mediaprep printer for documentatio


    pager
    Pager-Function

    Pager-Function
    Automatic message from the System Mediafill to the user when intervention is necessary or process finished


    Peltier cooling unit
    for rapid agar solidification and minimizing condensation
